OMNIScanner User Guide

5 - 2

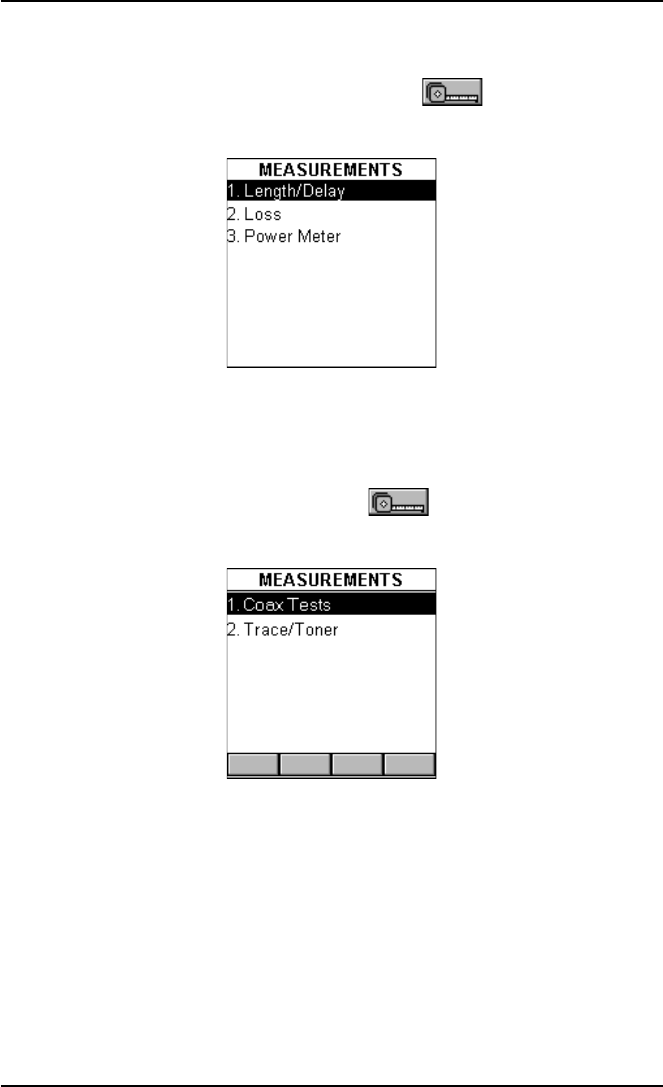

Measuring Fiber Optic Cabling

With the OMNI

Fiber

adapter attached, press the (Measurements)

function key to display the MEASUREMENTS screen for fiber optic cabling.

Measuring Coaxial Cabling

With the coax adapter attached, press the (Measurements) function

key to display the MEASUREMENTS screen for coaxial cabling.

Selecting an individual Test

Highlight the test you want to perform using the é or ê keys on your

keypad and press ENTER, or direct-dial a test by pressing its associated

number on the OMNI

Scanner

keypad.
