OMNIScanner User Guide

7 - 6

shown in Method B.

For Method C: Remove the middle launch cable without disturbing the

couplers.

Note: Once the reference value has been set,

ensure that both launch cables remain attached to

the fiber adapters. Remove the couplers without

disturbing the connection to OMNIScanner and

OMNIRemote. When setting the Reference using

Loopback or Method B, ensure that the TX (trans-

mit) connections are not disturbed.

Note: If the test configuration changes, a new

reference value needs to be established.

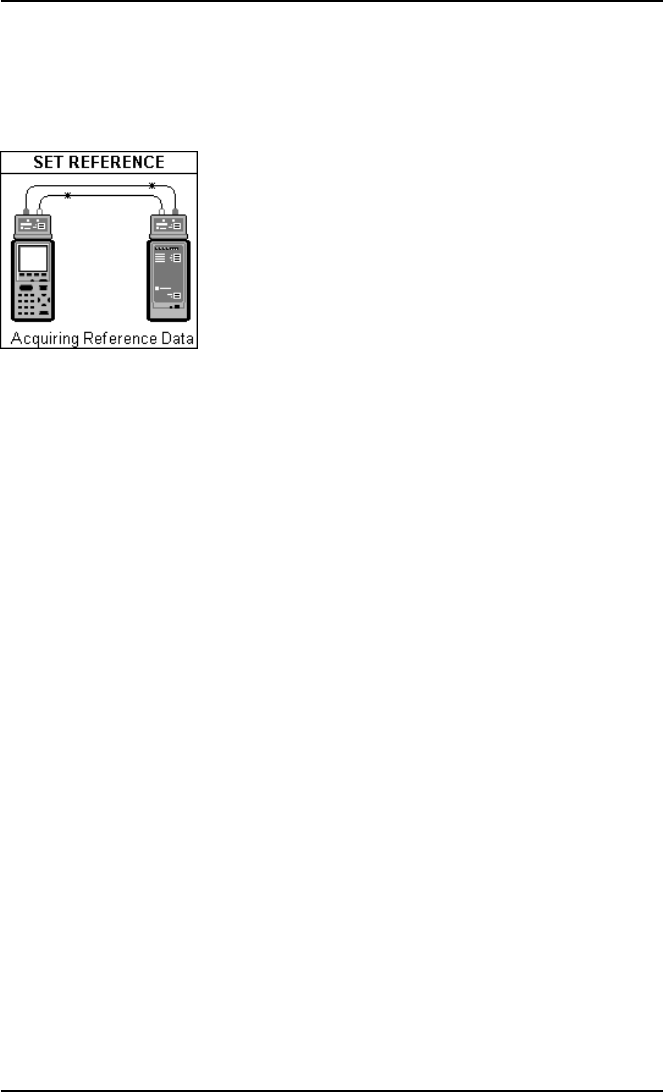

5. Once the reference values has been set, OMNI

Scanner

will display the

FIBER INFO screen.
