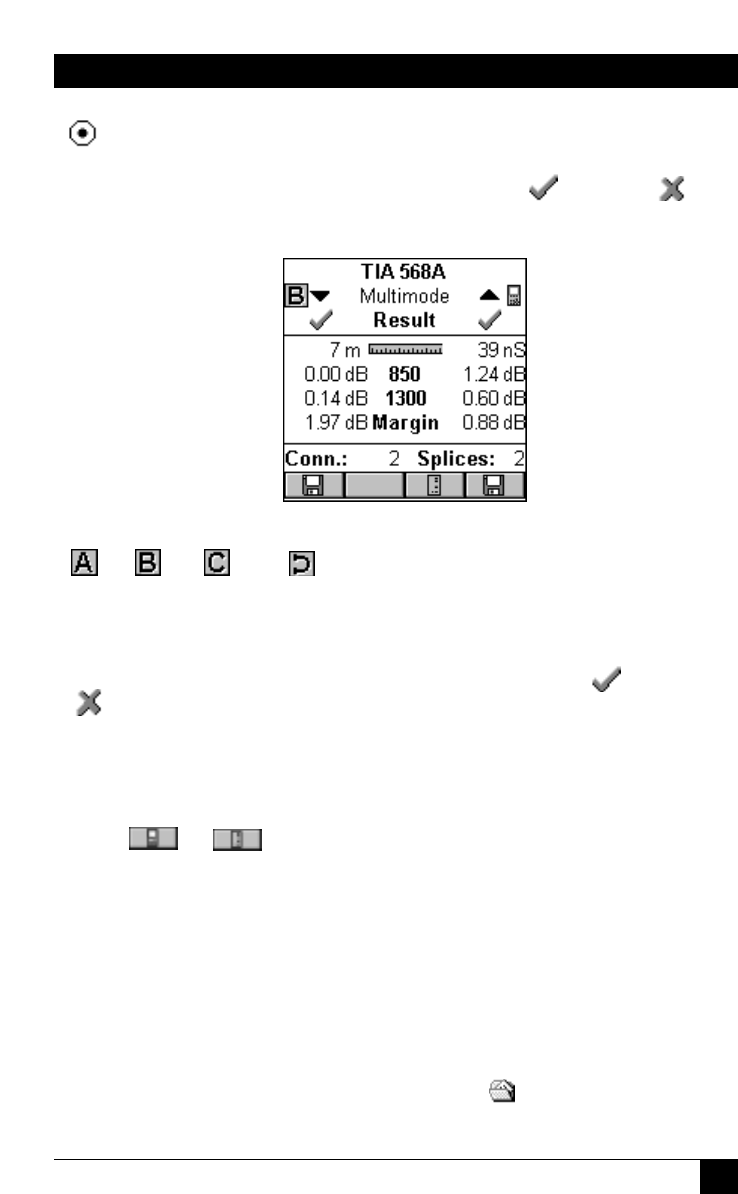

The Autotest Results screen will be displayed. The name of the Autotest, the cable

that was used to run the test, and the overall test result ( PASS or

FAIL) for both fibers are shown.

, , or (Loopback) is displayed to inform you what

method was used to set the reference. See Chapter 8, Fiberoptic Reference, for

further information.

When dual fiber was measured, arrows at the top of the screen point out the

direction of the light. The arrows also indicate the fiber that the (PASS) or

(FAIL) result is for.

The number of connectors and splices is shown at the bottom of the screen if

the Autotest loss criteria is formula-based. (See Appendix C for further

information.)

Press or to toggle between the results for OMNIScanner and

OMNIRemote.

Press ESC to return to the Project Name screen.

Press ESC to return to the Results screen.

7.3 Results Stored on a MultiMedia Card

OMNIScanner2 allows you to view results that are stored on the MMC.

Internally stored results are identified by a light Project folder.

CHAPTER 7: Results
